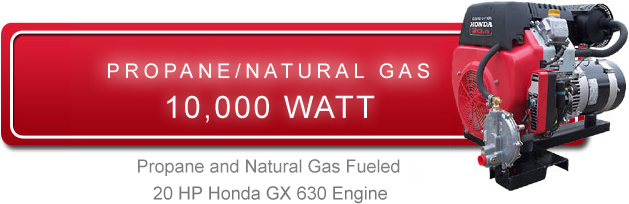

10,000 Watt Propane/Natural Gas Generator

Visit my Store  8,750 Watt | 10,000 Watt | 13,750 Watt


Our Reduced Price:$
View
View
View
View
View



10,000 Watt Propane/Natural Gas Generator - This propane/natural gas is suitable for standby power or emergency use and has plenty of power to run your home, job site or business. The generator's simple, compact design allows for easy installation in a variety of applications requiring a small footprint and can be anchored to a concrete pad or operated free standing.

Like all Central Maine Diesel generators, this unit is fully customizable. From auto start controls to fuel systems to 3 phase upgrades, you can customize the genset to fit your application! And, as an added benefit you will always have the flexibility to upgrade options later.
.
This unit features an 20 HP Honda GX 630 propane/natural gas engine, brushless generator, critical exhaust silencer, oil pressure shutdown, large capacity automotive style air cleaner, receptacle panel with 120 V and 240 V outlets, welded steel skid frame, vibration isolator mounts, battery cables, 2 year warranty and electric start.




Options   Price
Two-Wire Auto Start + $799
Low Pressure Regulator (for LP Tank) w/ Hose + $125
3 Phase Upgrade+ $345
50 Hz Operation + $150





Generator
Maximum Output 10,500 watts
Continous Output 9,500 watts
Power One-Phase
Load Amperage at 120 volts ---
Maximum Load 88 Amps
Continous Load 79 Amps
Load Amperage at 240 volts ---
Maximum Load 44 Amps
Continous Load 40 Amps
Sound Level @ 23 ft(7 m) 74 dB(A)



Engine
Model Honda GX 630
Type 4 Stroke, OHV, V-Twin
Horsepower 20 HP
Oil Capacity (w/ Oil Filter) Approx. 1.5 qts
Lubrication System Full Pressure
Oil Filter Automotive, Spin On Style
Cylinder Block Aluminum w/ Cast Iron Sleeves
Bore & Stroke 3.07" x 2.83"
Exhaust Outlet 1 1/4" OD Muffler
Fuel Propane & Natural Gas
Starting System Electric



Consumption
Consumption at 1/2 load 0.81 gallons/hour
Consumption at 3/4 load 1.1 gallons/hour
Consumption at full load 1.26 gallons/hour



Power Output Panel
120/240 V Twistlock NEMA#L14-30R 1-30 Amp
120 V Duplex NEMA#5-20R 2-20 Amp



Installation Data
Fuel Inlet Hose Size 3/8"
Fuel Fitting 3/8" FNPT
Fuel Inlet Pressure LP Gas: 11-14" Water Column
Natural Gas: 5-7" Water Column
Minimum Power Lead Size 0-50 Feet: 6 AWG
51-100 Feet: No. 4 AWG
No. Power Lead Conductors 4
Exhaust Outlet 1" OD Muffler Outlet
Battery Type 12 VDC - 400 CCA
Engine Oil Type 10W-30 Synthetic
Exhaust Location & Direction
(Facing Engine)
Left-side
Service Points
(Facing Engine)
Oil Fill Cap: Left-Side
Oil Filter: Left-Side
Fuel Inlet: Right-Side
Power Output: Back-Side
Control Panel: Back-Side
Air Filter: Front-Side



Maintenance Schedule
Replace Oil Filter 300 hours / 12 months
Replace Air Filter 300 Hours / 12 months
Replace Spark Plug 300 Hours / 12 months
Exercise Generator Under Load Once each month
Change Oil 100 hours / 6 months
Check/Adjust Valve Clearance 300 Hours / 12 Months



Warranty
Engine Warranty 2 Years
Generator Warranty 2 Years
100% Coverage for Parts & Labor Standard



Dimensions
Length 27-1/4"
Width 19-1/4"
Height 20-3/4"
Dry weight 195 lbs
